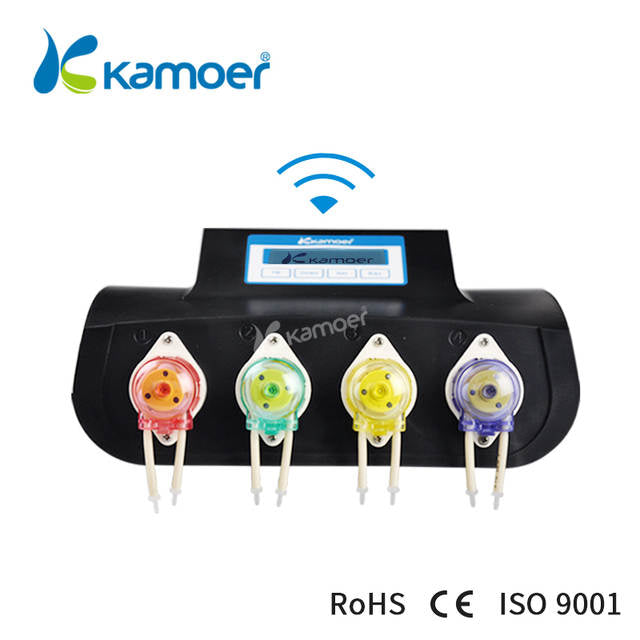

Kamoer X4 Plus WiFi Dosing Pump

Ensure Precise and Consistent Dosing

The Kamoer X4 PLUS is the latest, state of the art WiFi controllable dosing pump. It has all the same features as the standard X4 model, but now comes equipped with powerful rust-proof pump heads with longer lifetime, improved accuracy and more stable buckle drive. It offers flexible and precise control of liquid additions to your aquarium with four channels each with different colours to differentiate dosing liquid. The easy to use mobile interface make setup a breeze.

Software Details

• 3 operation modes (Manual, Auto or Custom mode).
• Easy setting
  • Set dosing start and stop time (does not have to be 24 hours (Example, user can set to auto dose from midnight to 6am only)
  • Enter total number of ml to be dosed over the time period
  • Enter the number of times to dose each time period (up to 24hr)
  • User can even choose dosing every 1 - 3 days or certain days per week.
• Adjustable dosing volume Auto mode: 0.1 - 9,999.9ml
• Delay setting between channels prevents chemical interference.

Functions

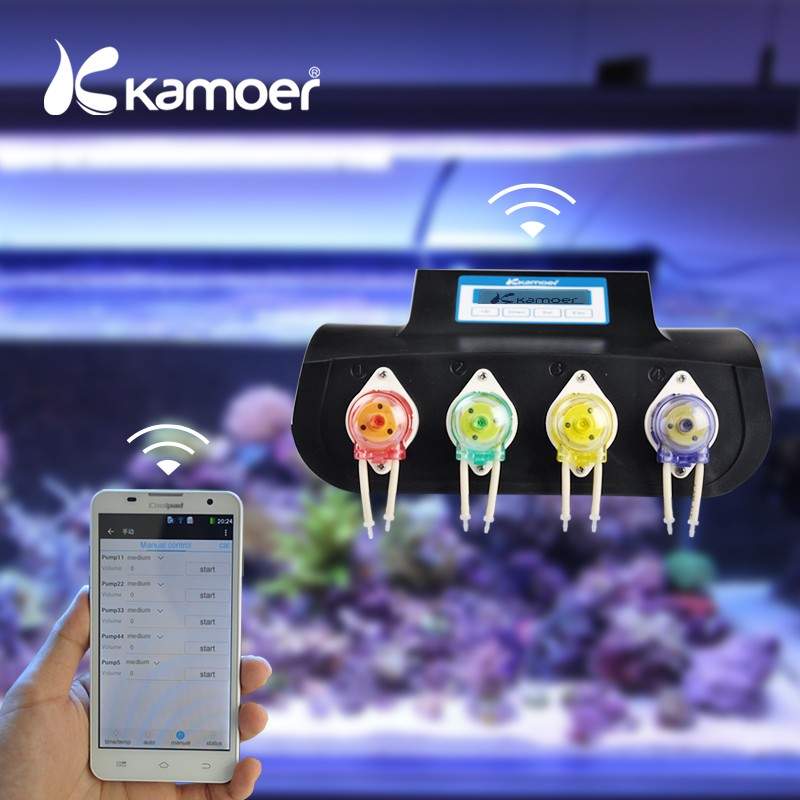

• WiFi Control of dosing Pump via iPhone, Android device or PC

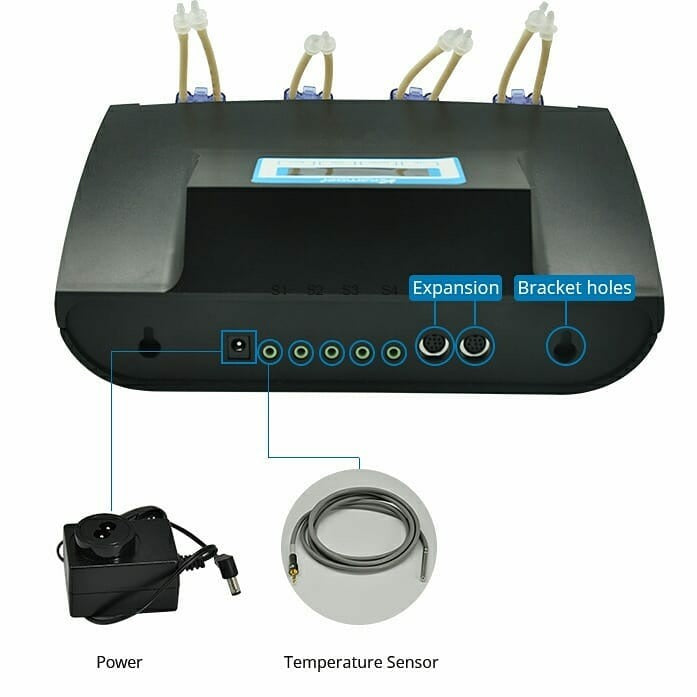

• Temperature Detection
• Temperature threshold alarm
• 4 Liquid Level detection inputs
• Software update via WiFi

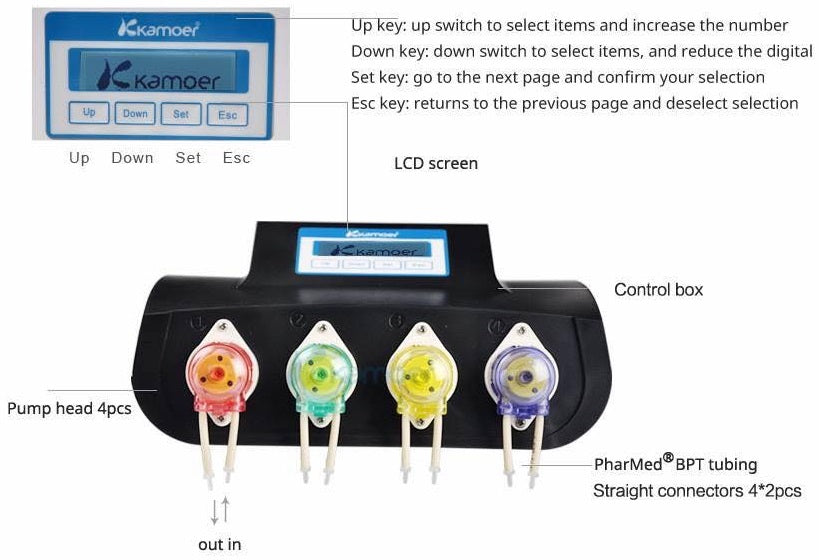

• Easy to read onboard backlight LCD display
• Battery back up - Settings saved if power lost
• Uses high quality PharMed® Tubing in pump head
• Calibration Accuracy: 0.1ml
• Minimum Dosing Volume 0.1ml

• Dosing Times: 24 times per day, to once every 7 days
• Fluid Volume: 1ml - 1000ml
• Calibration accuracy up to 0.01
• Accuracy: <+/-2%
• Dimensions 250 x 150 x 75mm
• Weight: 900g

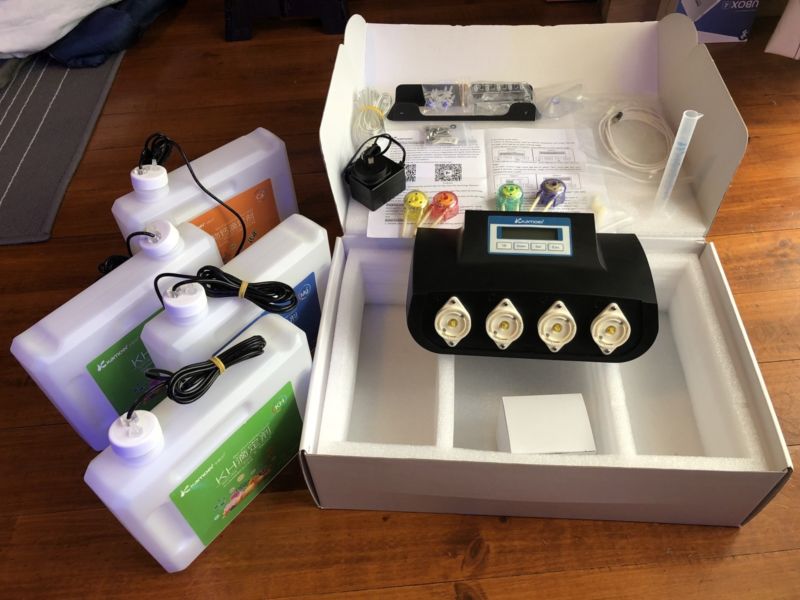

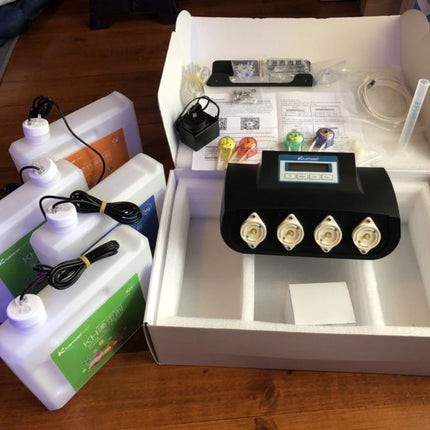

• X4 dosing pump
• Dosing pump holder
• Liquid level sensor manifold
• Temperature sensor
• PVC tube
• Liquid level sensor
• Graduated cylinder
• Power adapter
• Pump head
• Tube holder manifold / tube bracket
• Suction cup
• User manual
