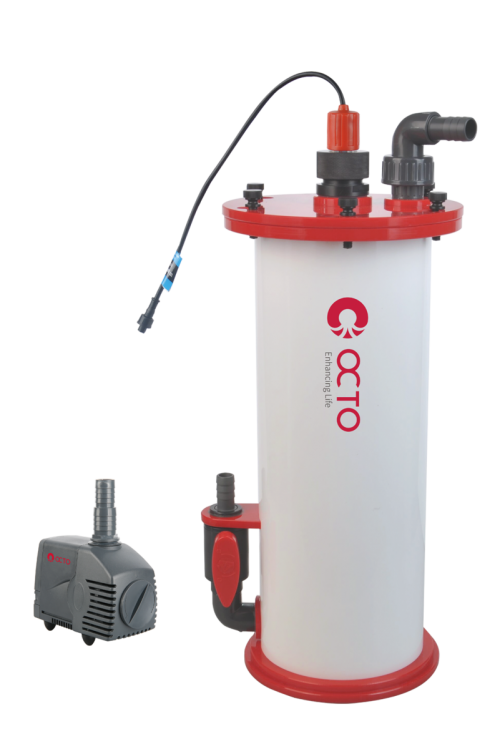

Reef Octopus Macro Algae Reactor
R 8,358.00
Our LR Reactors are made with the most robust material to ensure that they adhere above the industry standards of keeping in shape and watertight. With our unique Triangular LEDs placement eradicating blind spots couple with optimum spectrum guarantees a quicker growth rate.
Harvest timeline can be easily controlled via the adjustable light intensifier should you wish to slow down the growth rate. Bundled with a 3 Tiers Strainer Basket to make harvesting a breeze.
Available in 2 models – LR-150, LR-200
Warranty (against manufacturing defect):
2 years* – pump motor only
Features & Benefits
- Circulation Pump Included
- Adjustable light intensity
- IP67 Certified LEDs containment
- Strainer Flip Stand – for easy maintenance
- High-Quality Hand Made acrylic construction
- Removable 3 tiers strainer container for easy harvesting
- Perfectly balance of light spectrum for optimal Chaetomorpha growth

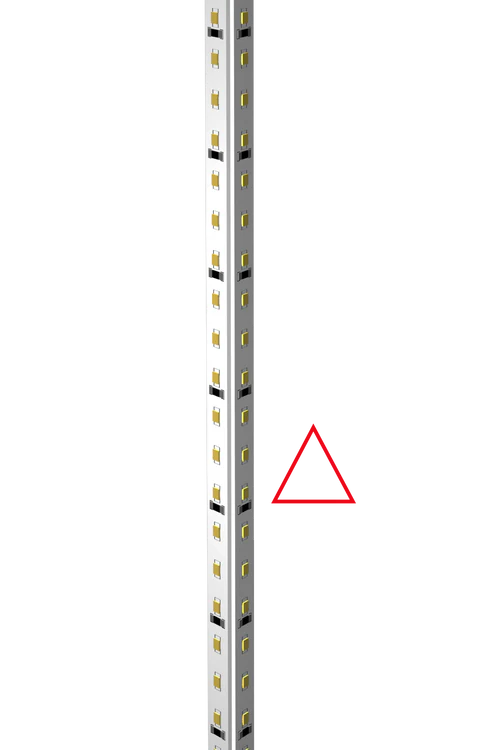

- Unique Triangular LEDs Panels placement for a balance of 360 degrees coverage
What's included
| LR-150 | LR-200 | ||||
| Article Code | Items | Model No. | Qty | Model No. | Qty |
| 1 | Lights Holder | – | 1 | – | 1 |
| 1.1 | Holder Cover | 2020100003 | 1 | 2020100003 | 1 |
| 1.2 | O ring (22*5) | 1050100024 | 1 | 1050100024 | 1 |
| 1.3 | Holder | 2020200020 | 1 | 2020200020 | 1 |
| 1.4 | O ring (35*3) | 1050100035 | 1 | 1050100035 | 1 |
| 2 | Reactor Cover | – | 1 | – | 1 |
| 3 | Strainer | – | 1 | – | 1 |
| 3.1 | Screw (M5*15 ) | 1042500001 | 9 | 1042500001 | 9 |
| 3.2 | Holder | 2010100152 | 9 | 2010100152 | 9 |
| 4 | O ring | 1050100083 | 1 | 1050100087 | 1 |
| 5 | Screw (M8*25) | 1042500005 | 6 | 1042500005 | 8 |
| 6 | Chamber | – | 1 | – | 1 |
| 7 | Threaded Nozzle | 2020300009 | 1 | 2030200004 | 1 |
| 8 | Pump (AQ-1200) | 110203 | 1 | 110206 | 1 |
| 9 | Threaded Nozzle | 2030200004 | 1 | 4999900003 | 1 |
| 10 | Outlet Nozzle | 4030301002 | 1 | – | 1 |
| 11 | O ring | 1050100089 | 1 | 1050100090 | 1 |
| 12 | Lights | 1110400005 | 1 | 1110400005 | 1 |
| 13 | Lights Adjustable Switch | 1110400006 | 1 | 1110400006 | 1 |
| 14 | Power Adapter | DC12V / 2A | 1 | DC12V / 2A | 1 |
Technical Data
Lights Reactor
| Product | Item No. | Wet/Dry | Diameter | Footprint | Height | Input Fittings | ||||||||
| Barb Fittings | PVC Pipe | |||||||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |||||
| LR-150 | 130309 | Both | 150 | 5.9 | 230 | 205 | 9.1 | 8.1 | 510 | 20.1 | 17.0 | 5/8 | 20.0 | 1/2 |
| LR-200 | 130310 | Both | 200 | 7.9 | 285 | 265 | 11.2 | 10.4 | 510 | 20.1 | 20.0 | 3/4 | 20.0 | 1/2 |
| Product | Item No. | Output Fittings | Tank Volume | Power（w） | Pump | |||||
| Barb Fittings | PVC Pipe | |||||||||
| mm | inch | mm | inch | L | US Gal | LED | Pump | |||
| LR-150 | 130309 | 20.0 | 3/4 | 20.0 | 1/2 | 200-600 | 52-158 | 18 | 15 | AQ-1200 |
| LR-200 | 130310 | 20.0 | 1/2 | 25.0 | 3/4 | 500-1000 | 132-264 | 18 | 45 | AQ-2000 |
| 25.0 | 1 | |||||||||
Circulation Pump
| Product | Model No. | Wet/Dry | Power | Max Head Height | Maximum Flow Rate | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| W | W | m | Ft. | m | Ft. | LPH | GPH | LPH | GPH | |||
| LR-150 | AQ-1200 | Both | 10 | 15 | 1.1 | 3.6 | 1.3 | 4.3 | 1300 | 343 | 1287 | 340 |
| LR-200 | AQ-2000 | Both | 42 | 45 | 2.0 | 6.5 | 2.1 | 6.9 | 2000 | 528 | 2203 | 582 |
Electrical or other Certification
Pumps (AQ) – CE & PSE certified
Lights – CE certified
Explosion Charts
Explosion for LR-150
Explosion chart for LR-200
